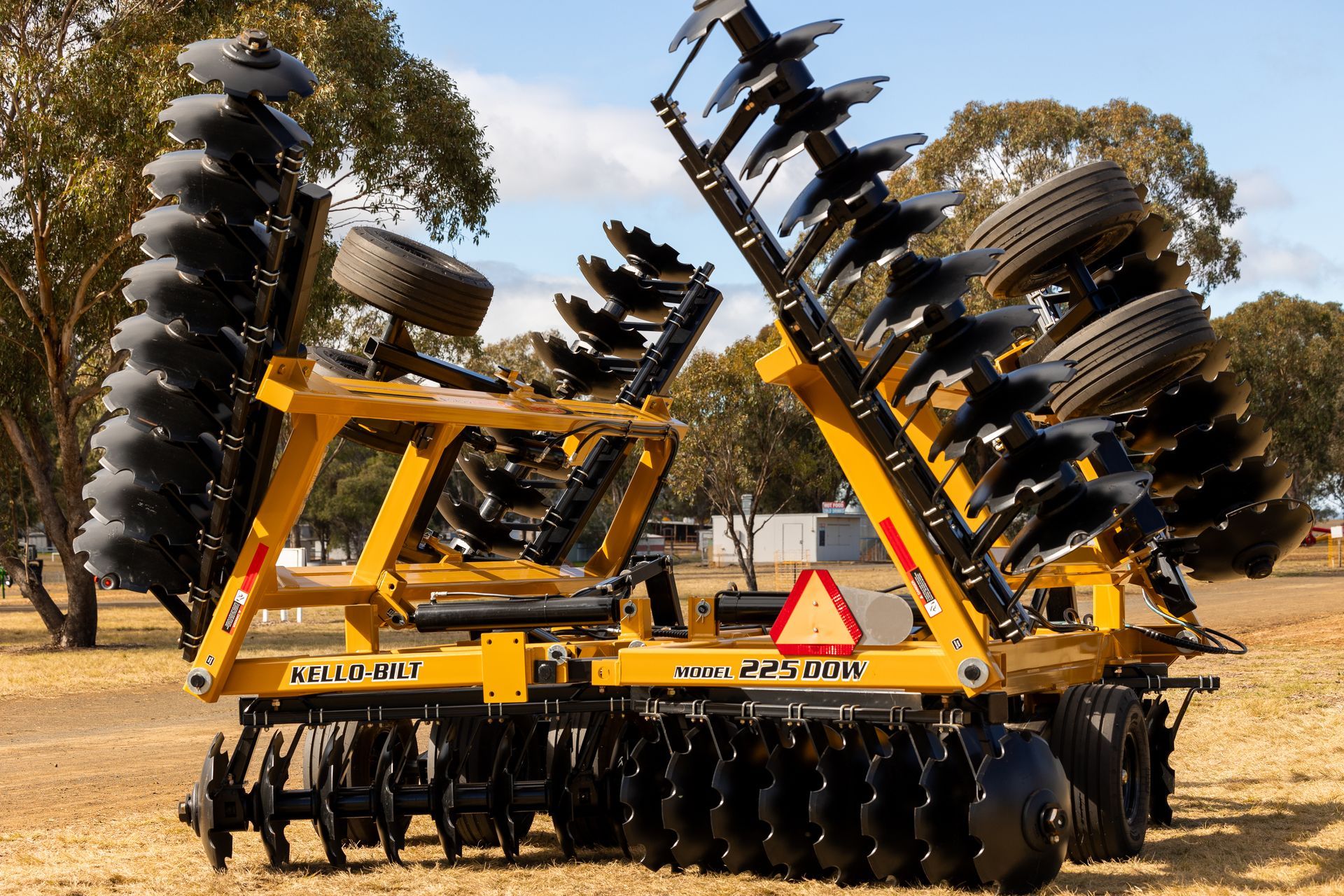

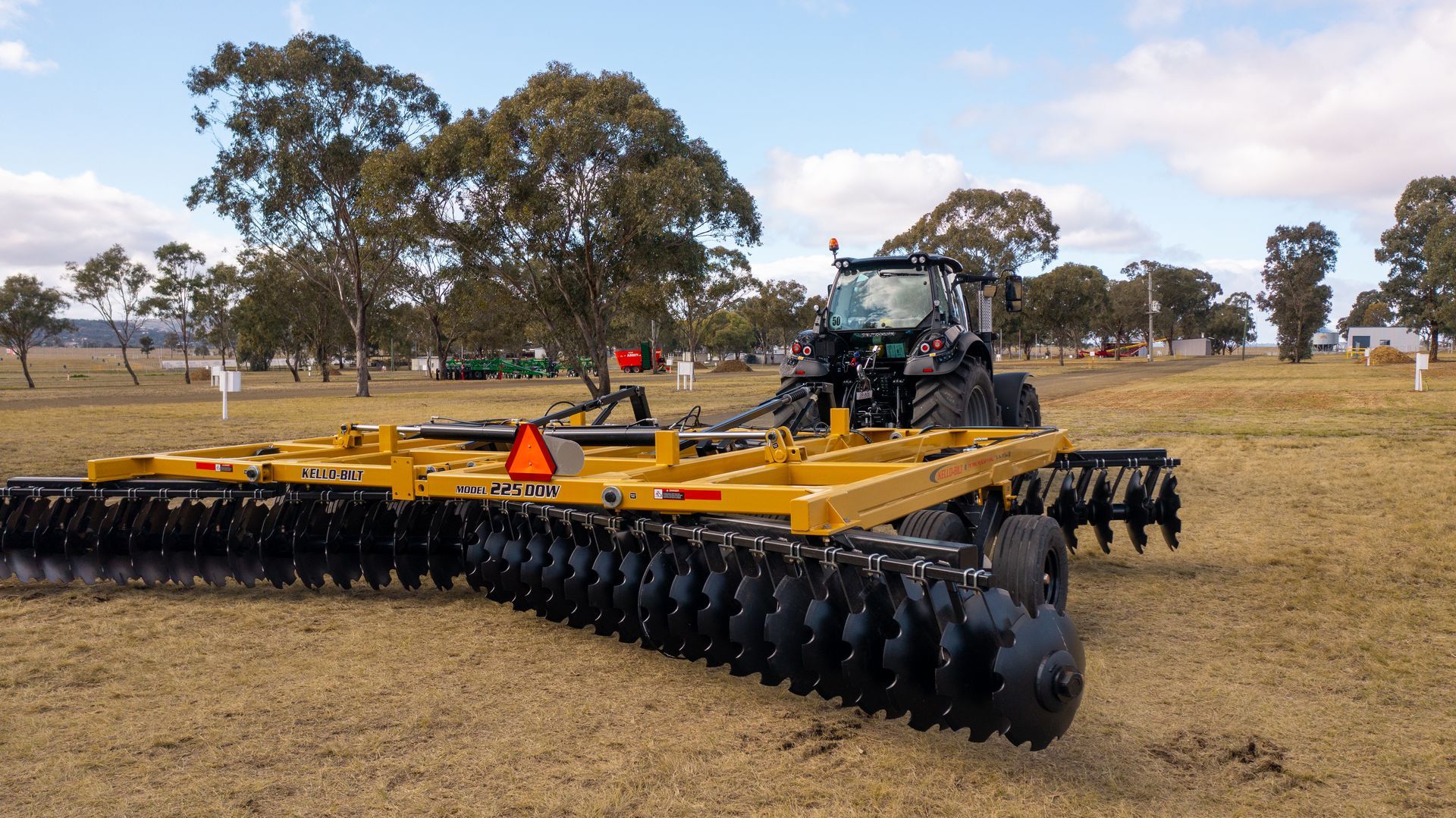

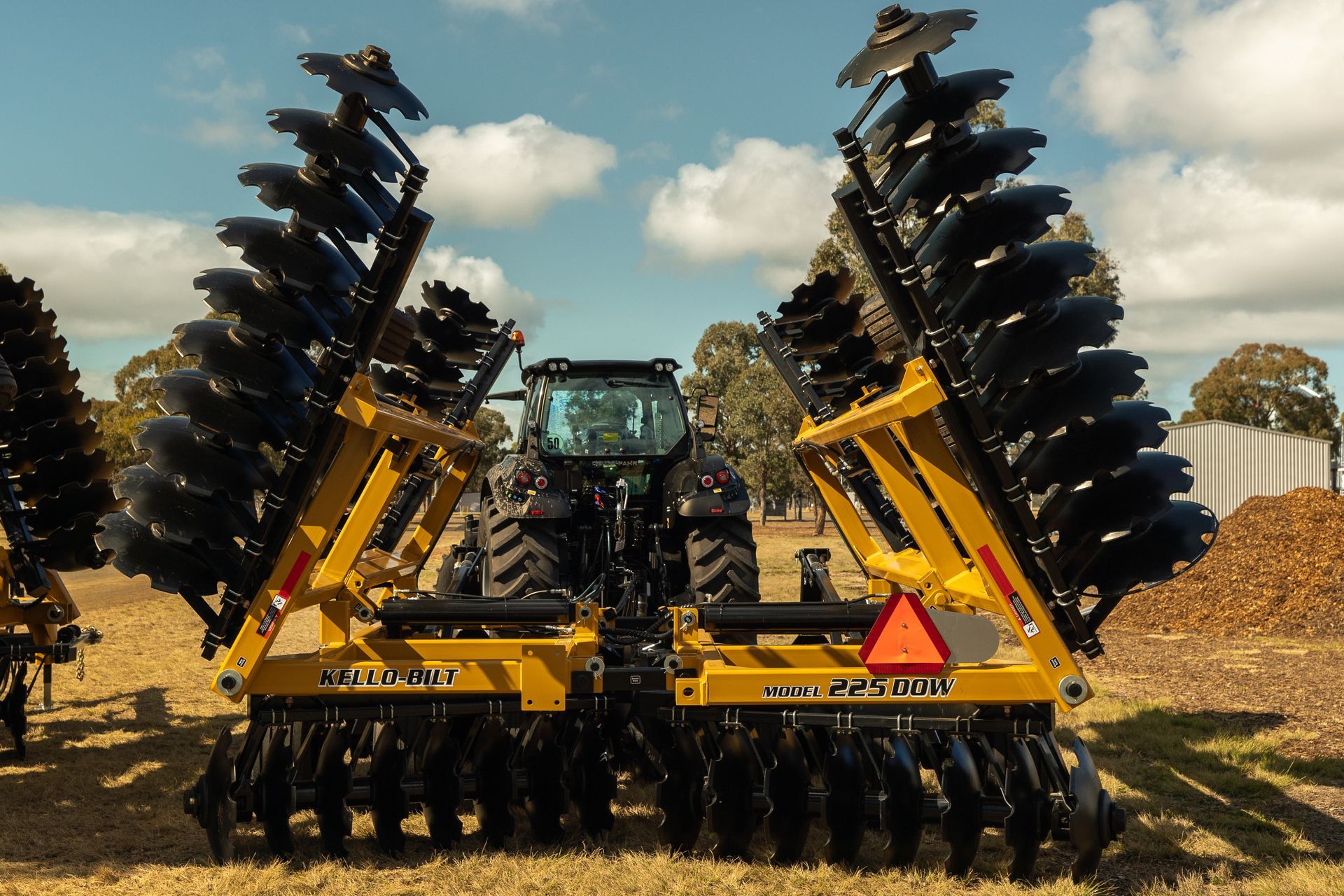

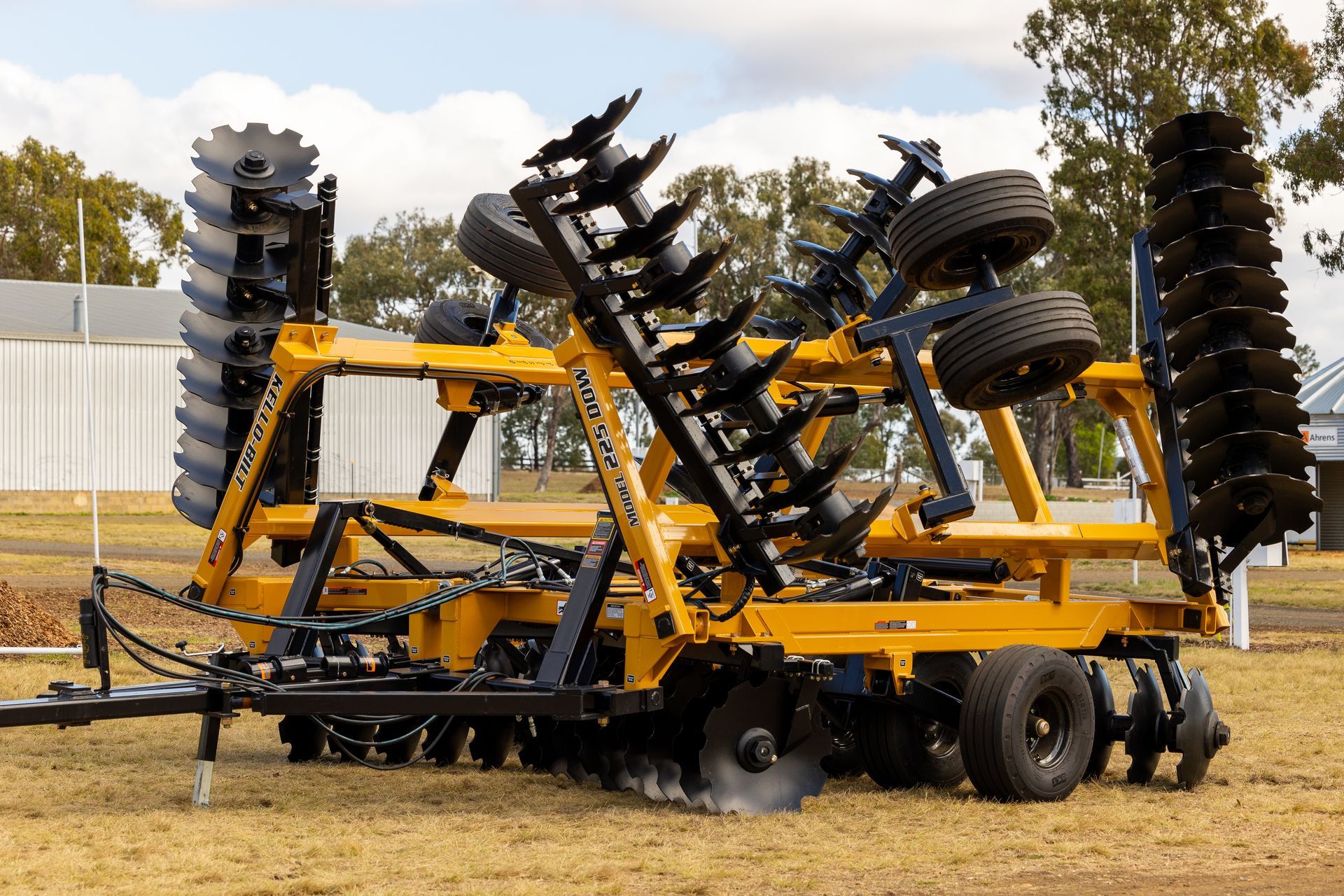

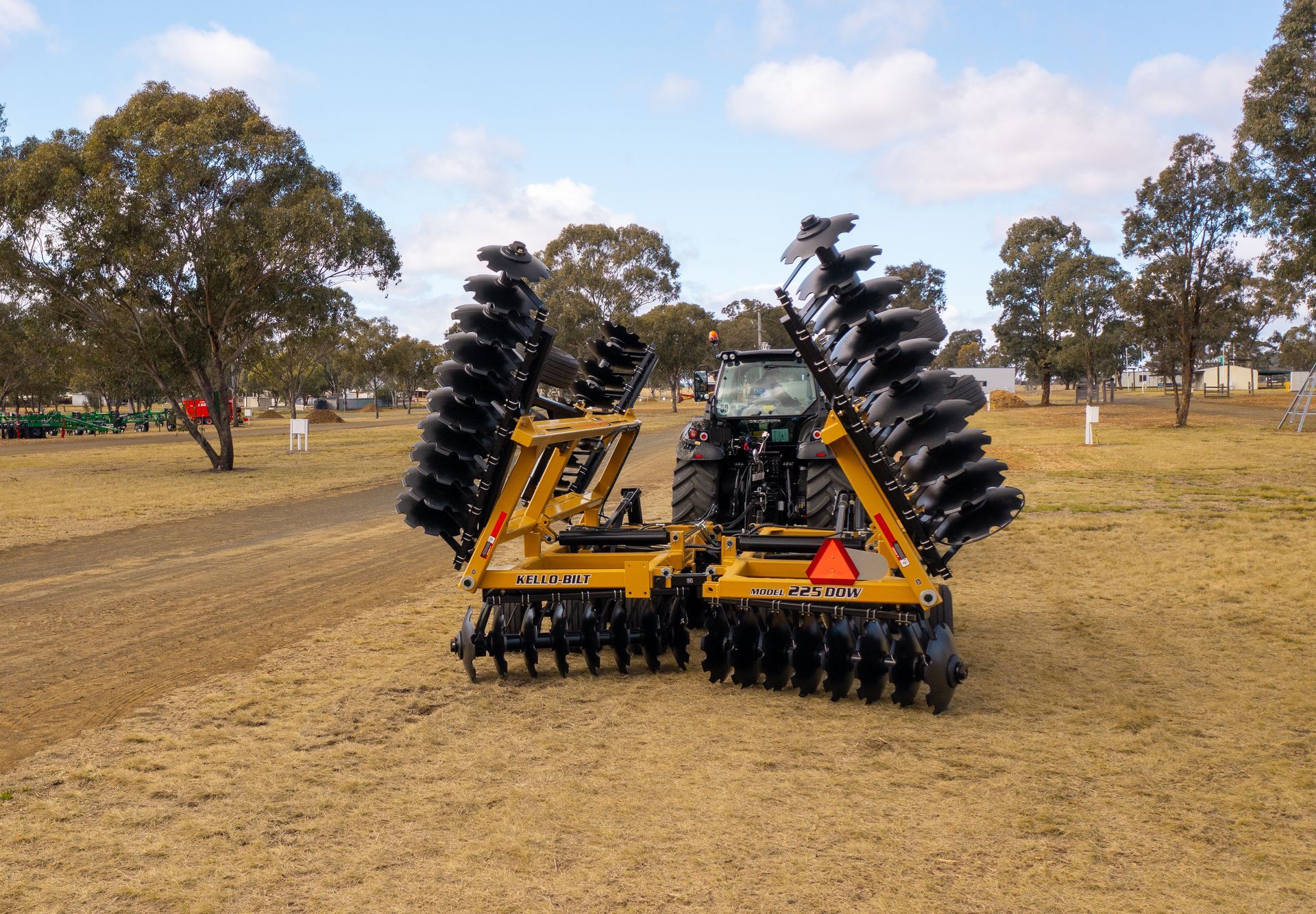

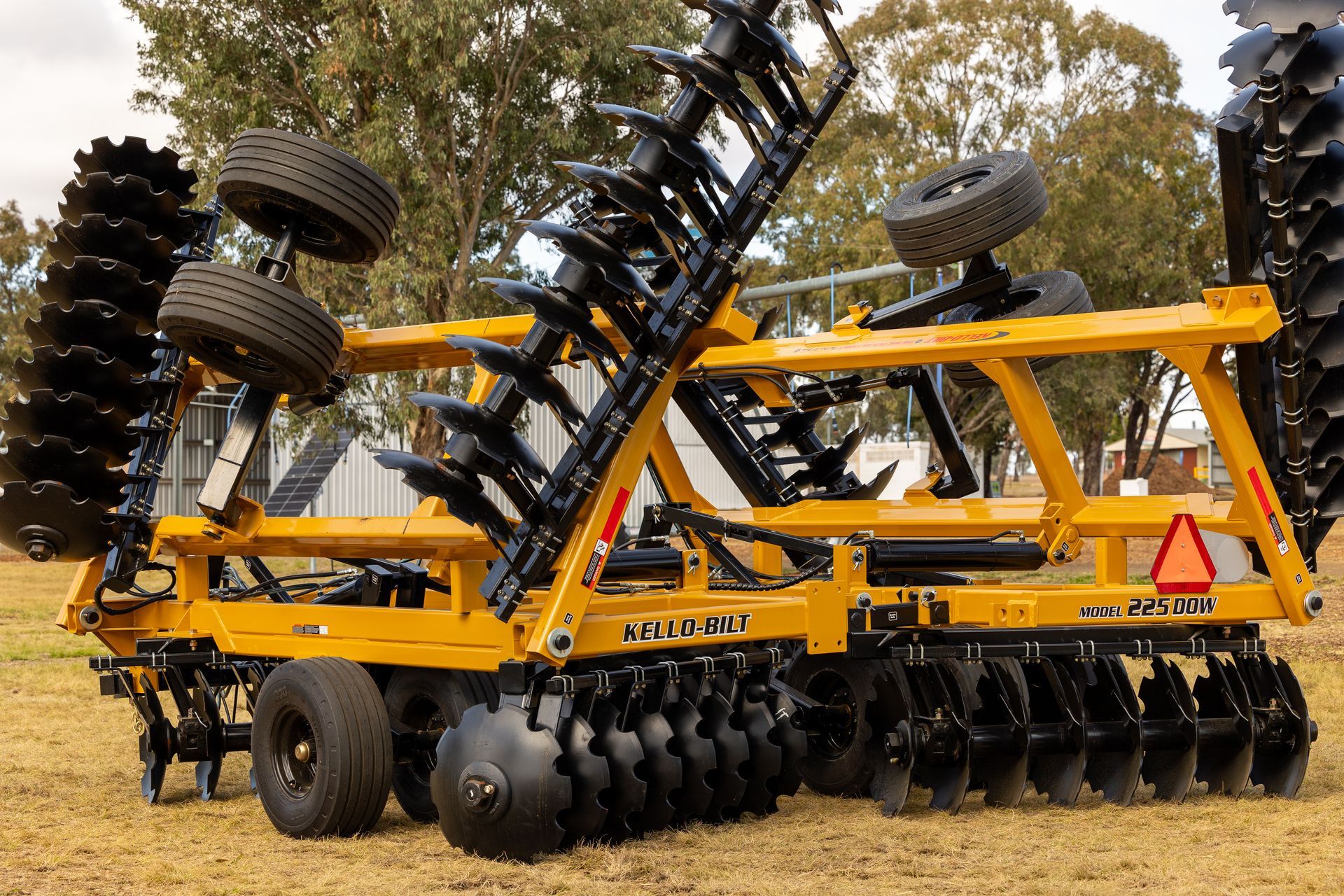

Model 225DOW

Tandem Disc Plough

This model features a four section design for maximum flexibility and weight distribution, with folding wings with narrow width for ease of transportation.

  • 225dow

    Slide title

    Write your caption here
    Button
  • 225dow

    Slide title

    Write your caption here
    Button
  • 225dow

    Slide title

    Write your caption here
    Button
  • 225dow

    Slide title

    Write your caption here
    Button
  • 225dow

    Slide title

    Write your caption here
    Button
  • 225dow

    Slide title

    Write your caption here
    Button

Specifications

Model Disc Size Cut Width Transport Width Transport Height Weight KGs Per Disc Blade Suggested Drawbar Horsepower
46 Plate 28" SC 5.48 MT 3.61 MT 3.30 MT 7,834 KG 206 KG 200 +
50 Plate 28" SC 5.94 MT 3.61 MT 3.50 MT 8,015 KG 190 KG 210 +
54 Plate 28" SC 6.4 MT 3.61 MT 3.73 MT 8,200 KG 178 KG 220 +
58 Plate 28" SC 7.31 MT 3.61 MT 3.96 MT 8,841 KG 177 KG 230 +
74 Plate 28" SC 8.84 MT 5.38 MT 4.47 MT 11,177 KG 169 KG 300 +
82 Plate 28" SC 9.75 MT 5.38 MT 4.72 MT 11, 598 KG 157 KG 340 +
Frame 150 x 100 x 10mm RHS
Bearings Oil bath, back to back timken tapered roller bearings in heavy ductile cast. Bearing comes complete with wear plate.
Gang Shafts 2-1/8” heat treated high strength alloy steel, threaded on both ends.
Spacing 10 - 1/2” fabricated steel spacer spool.
Disc Blades 5/16” x 26” notched disc blades front and rear. Optional 28” notched, smooth and wavy blades available.
Hub / Tyres Comes with eight 12.5L x 15 (load range F) highway implement tires mounted on 8 bolt hub assemblies.
Hydraulics 5” diameter hydraulic cylinders complete with hoses, depth control segments and cylinder transport lock.
Standard 7000lb 7,000 lb hitch jack, plated grade 8 fasteners, gang wrench (2) and separate fore/aft and transport level controls.

This product is renowned for it’s Simplicity, Strength, Durablity, and Reliability

“I’m proud to be the Australian distributor” - Tom
