Model 325TSW ULTRA

ULTRA Heavy Duty Tandem Disc Plough

Built to handle the tough stuff, this model offers unbeatable durability for tackling regrowth or ploughing cattle country.

  • 325TSW Ultra

    Slide title

    Write your caption here
    Button
  • 325TSW Ultra

    Slide title

    Write your caption here
    Button
  • 325TSW Ultra

    Slide title

    Write your caption here
    Button
  • 325TSW Ultra

    Slide title

    Write your caption here
    Button

Specifications

Model Disc Size Cut Width Transport Width Transport Height Weight KGs Per Disc Blade Suggested Drawbar Horsepower
50 Plate 32” SC 6.71 MT 3.61 MT 3.30 MT 13,800 KG 276 KG 200 +
Frame 150 x 150 x 12mm RHS
Bearings 12” oil bath, back to back timken tapered roller bearings in heavy ductile cast. Bearing comes complete with wear plate.
Gang Shafts 2-1/2” - 4140 high tensile shafts
Spacing 12” fabricated steel spacer spool
Disc Blades 32” x 12mm scalloped disc blades as standard to front and rear.

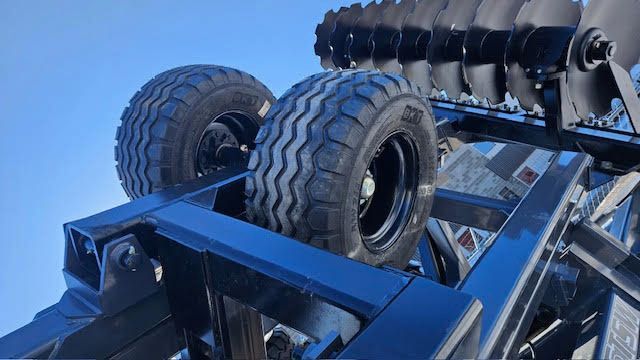

Hub / Tyres Heavy duty 8 stub hubs. 395 x 55 BKT radial floatation tyres as standard.
Hydraulics 5” diameter hydraulic cylinders complete with hoses, depth control segments and cylinder transport lock.
Standard 7,000 lb hitch jack, plated grade 8 fasteners, gang wrench (2) and separate fore/aft and transport level controls.

This product is renowned for it’s Simplicity, Strength, Durablity, and Reliability
